DYVI - Video Switcher

EVS PRODUCTS

DYVI - Video Switcher




Software-defined live production switcher


The Dyvi switcher offers a brand-new approach to live production, taking you far beyond the limits of conventional hardware switcher design. Its GPU processing and software-defined architecture offer outstanding flexibility, scalability and creativity to suit all your production workflows. With its fully configurable panel and intuitive user interface, Dyvi allows the fast operation of complex, multi-layered video designs, to engage and entertain your audiences like never before.



Core benefits


CREATIVE FREEDOM


Break free from the constraints linked with proprietary fixed hardware to explore a new world of creativity where complex designs are created with almost unlimited layers and effects for the highest value production content.


BUILT-IN FLEXIBILITY


The Dyvi’s unique GPU-based technology and stackable PMY processing modules provide outstanding flexibility and boosted processing power to serve all production requirements. Besides its expansive creative toolset, the Dyvi also lets you create in the format of your choice including UHD 4K and 1080p with support of hybrid SDI/P connectivity.


INTUITIVE CONTROL


Each button can be assigned to a single function, or a combination of commands, all controlled from a user-friendly interface. These configurations can then be recalled in an instant with a single press of a button, allowing for more streamlined operations and quick content turnaround.


Key features

  • Next event operation workflow (Story Mode rather than technical M/E style)
  • Unlimited effects stack (e.g. Chromakey on Chromakey on Chromakey…)
  • Totally flexible and scalable internal architecture
  • Integrated Multiviewers
  • Compositing engine for vision mixing
  • Incredible range of creative effects and filters
  • Conditional macros (unlimited, simultaneous active macros)
  • Multi layers effects
  • 3rd party control
  • Flexible and customizable layout of control panel
  • Software-based platform
  • Global sources and effects paired to sources, stages or layers
  • Compositing of layers and effects in scenes


Product components

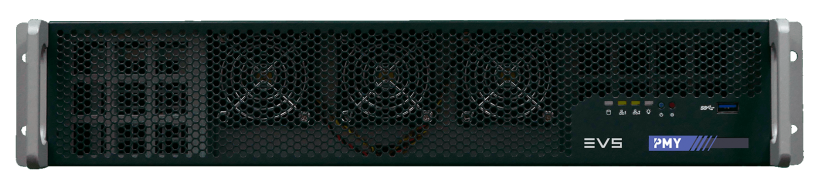

Processing module



PMY

  • 32 IN x 16 OUT
  • Orderable as 3G-SDI
  • Orderable as IP QSFP+ 40Gbps (ST2110, PTP, NMOS IS-04, IS-05, Ember+)
  • Highspeed network (100G) data buss for PMY interconnection
  • Ram Recorder (8 channels / 32GB memory per PMY)
  • 100 Video+Key additional still store pictures per system (10 live at a time)
  • Lumakey, Chromakey, Wipes, DVE effects, enhanced color correction
  • Tally over Ethernet + Tally interfaces (32 levels)
  • Integrated 2 multiviewers: 32 PiP (display Ports) per PMY
  • Linux OS onboard

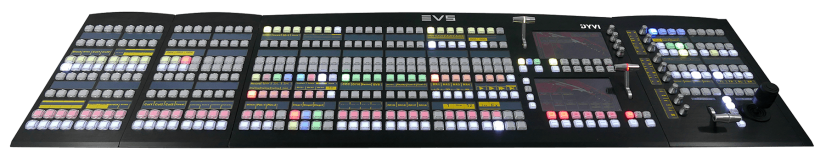

Control panel


Dyvi control panel

  • Main panel 24 buttons wide similar to 2 stages
  • OLED displays and transition module
  • Up to 4 optional extension modules for expansion (8 buttons wide module)
  • Optional multi-function module with 3-axis joystick (MFM)

GUI



Dyvi GUI

Touchscreen Windows PC for management, configuration and parallel operation


0 Comments
WELCOME TO THE NEXT LEVEL OF LIVE PRODUCTION

The broadcast industry is undergoing a transformation. Audience expectation for more, the proliferation of ‘prosumer’ equipment, and new stakeholders entering the market are putting content producers under more pressure to create new kinds of engaging video, as efficiently as possible. To allow content creators to address these challenges and make the most of every moment, EVS is introducing a new way to deploy live production workflows.


A NEW APPROACH TO PRODUCTION

The purpose of EVS’ new core platform is to allow content producers and facility providers to create the most compelling live stories, assisted by technology instead of being constrained by it.
The service-orientated nature of the platform makes it easier for your users to put in place live production workflows that better suit your facilities’ needs. And the integration of third-party technology using an API gateway will enable users to create completely customized production systems.
VIA represents much more than just new technology. It’s enabling a new way of thinking about creating live programming to meet today’s needs and execute tomorrow’s content production demands.


VIA sits at the core of EVS’ emerging product portfolio and is supported by three technology pillars

  • VIA Flow
  • VIA Mind
  • VIA Opengate


INTRODUCING VIA TO THE EVS FAMILY

In 2018, EVS introduces several products that are unleashed by VIA platform.


Welcome to the production workflows of tomorrow in which your content creators can take advantage of tailored production solutions and service-centric technology to allow them to create the most immersive live programming.
